Seadog Oval Kayak Hatches

[Jon_Ferguson]

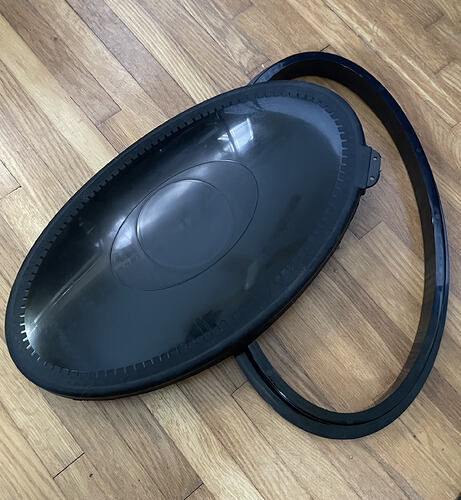

My hatches arrived. Any tips to installing these in the deck? Any pitfalls?

[Jon_Ferguson]

https://youtu.be/sAjWsuysEYM?is=YJ69ZoITCDqdao9T Howard shared this elsewhere.

[Jon_Ferguson]

Shared from the Guider launch thread

[Jon_Ferguson]

Started my build SW Dory

Since I have to reach the rudder gudgeon hardware I moved the Sea Dog oval hatch about 2” aft. Sea dog ovals have a lip inside the bottom of the flange so I ended up cutting the hole the size of the middle of the flange then using my combo square to draw a series of dashed lines about an 1/8th wider than the inside line. Then I just free hand sketched the oval again and cut again. My doubler looks a little crude compared to the Seadog flange. But it should be sound. I’ll sand it in place after t…

[Jon_Ferguson]

Started my build SW Dory

The aft hatch doubler is encapsulated and filleted. Flange and deck mating surfaces were scuffed with sandpaper. The Oval hatch flange is bedded in G-Flex thickened with cell O Fill and I used graphite to make it black so it matches the flange. It’s my first time using G-flex, we will see. Portside seat to footwell reinforcement has three coats of unthickened epoxy on top and starboard side has two. Top strake encapsulation continues. [IMG_3643] [IMG_3642]

[Jon_Ferguson]

Started my build SW Dory

Forward hatch doubler echoes the process aft. After a stressful work day it feels surprisingly good to build a boat. The aft hatch is in and I’m very happy with it. The flange is ridiculously strong, you can lift the stern of the boat by it. That G-Flex is pretty good stuff. [IMG_3647] [IMG_3646] [IMG_3652] [IMG_3651] [IMG_3649] [IMG_3648]

[Jon_Ferguson]

Started my build SW Dory

Forward hatch complete. Putting clear drop cloths in the lockers was wisdom. [IMG_3662] [IMG_3663] [IMG_3661] [IMG_3660]
